The basics 🔤

The fundamental basics of the Stratos Tokens design token framework

Introduction

We have a few essential framework rules to get started using our app with Sketch or Figma. It’s our design tokens 101. After you grasp our framework, you can start learning how you use these together with our built-in markup support for Style Dictionary, and you’ll be auto-translating the raw design token data into more formats than you’ll ever need.
Or you can skip Style Dictionary altogether. This depends solely on how your team wants to implement design tokens into the code base.

The raw output is json

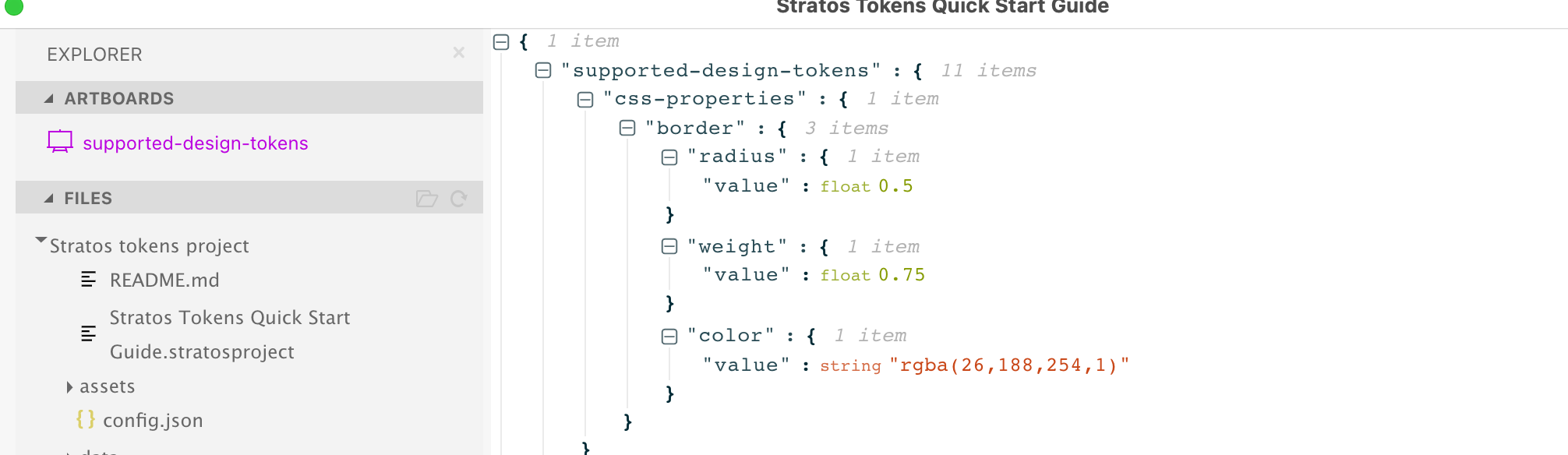

When you apply our basic framework rules on layers in Sketch and Figma what you see in our app is the raw design token json data 👇

This design data structure is available from three places:

  • Direct copy/paste from each design token artboard that you have created
  • Stand-alone file in the project’s data folder.
  • Downloadable as NPM-project

Why only raw json design tokens?

The main reason is that many design systems actually use something called theming where you can do lots of magical things with "just" exporting json design tokens. Material-UI is one example and we even built a very simple demo for it.
Also you don't even need a big fancy design system or theme provider to use the design tokens that comes out of Stratos Tokens. Here's a great read about styling React components. Please advice that this article is from 2020 before we introduced our breaking framework change.

What if I need to do more?

That's the whole reason we also have built in support for Style Dictionary.
If you need also to convert the raw design token json data into say for example scss you will need to:
  1. 1.
    Use our framework rules
  2. 2.
    Use our built-in Style Dictionary markup support
  3. 3.
    Install Style Dictionary onto your project folder
  4. 4.
    Run the build command for Style Dictionary each time you have updated or created new design tokens from Sketch or Figma
This can seem a bit taunting, we truly understand. On the other hand, if you follow all these rules plus use Style Dictionary’s markup you will translate the raw design token data into all these formats by default with one build command:
  • scss
  • less
  • android
  • iOS
  • iOS-swift
  • css
  • js
  • json
  • react-native
  • sketch-palette
The cool thing with Style Dictionary is that you can add even more so-called Transforms to better fit your current workflow.

Stratos Tokens framework rules

  • The structure of nested Groups in the design document defines the structure of the output JSON data
This example is not following Style Dictionary markup

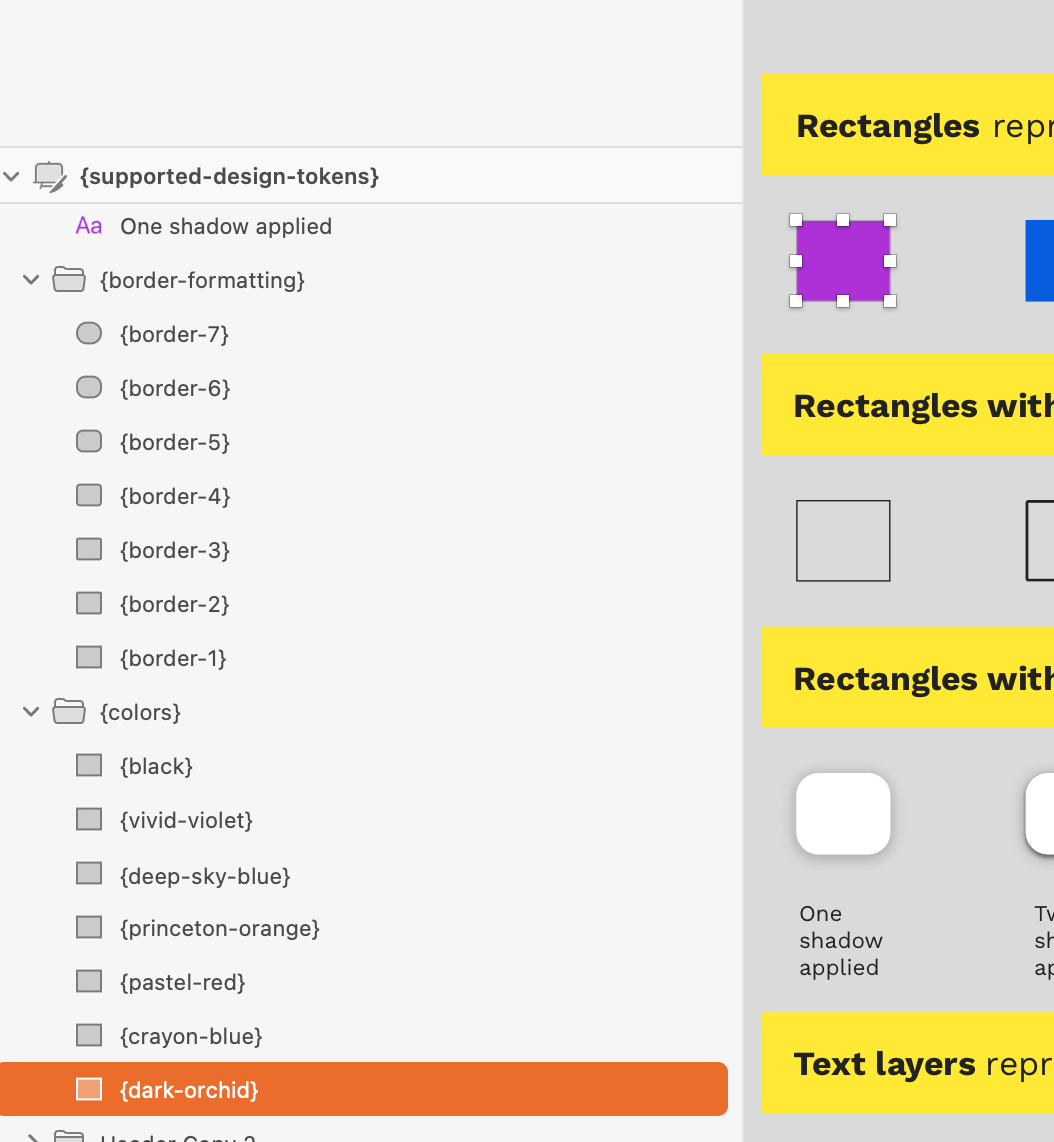

  • Rectangles represent a color value based on the rectangle’s fill value
  • Rectangles without a fill results in border formatting. (you get color, radius, and weight). Pro-tip: Name your rectangle {color}, {radius} or {weight} to get only that value.
  • Text layers represent text formatting
  • Text layers with values within { } are evaluated👇
  • Text nodes with {{ }} values within are considered as Style Dictionary references / shortcuts to be able to reuse values. These are also known as alias tokens.
Text layers with names that matches a CSS property will have only that CSS property’s value
  • Text layers with names that matches a CSS property will have only that CSS property’s value (as opposed to plain text layers, which will contain all CSS properties; see bullet 4 above). Kindly note that the layer names need to be camel case (i.e., {fontSize} or {fontFamily})
    ​

Stratos Tokens project configuration

When creating a new Stratos Tokens project, a project configuration file is created, named nameofmydesignfile.stratosproject.

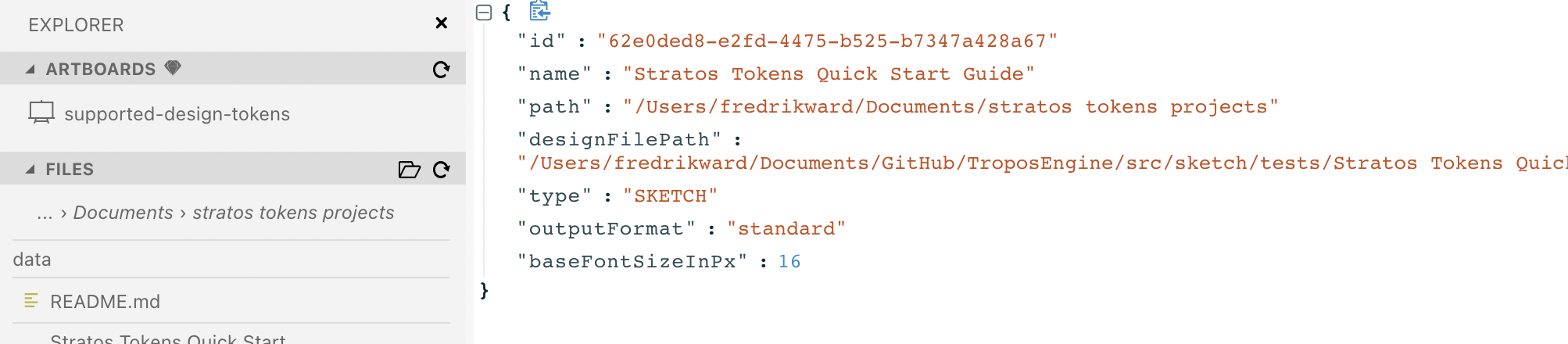

The default configuration of a Stratos Tokens Sketch project
The default configuration of a Stratos Tokens Figma project

Properties

id

An identifier, unique to every project

name

The project name is taken from your design file name

path

The project's location on your hdd

designFilePath (Sketch only)

The path to your Sketch design file on your hdd

documentId (Figma only)

The document id of your Figma design file

type

Can be either SKETCH or FIGMA depending on the design file type

outputFormat (optional)

OutputFormat enables the json output to better match popular structures like MaterialUI and Style Dictionary. It can have one of the values (standard or styledictionary). This property can also me omitted from the configuration file - then Stratos Tokens will not apply any special transformation. See examples below:
  • standard (default)
  • styledictionary
  • not specified (property outputFormat is omitted from the configuration file)

baseFontSizeInPx

All values defined in px such as font size, line height etc in Sketch and Figma is translated into unit-less values (with a default base of 16px). E.g. 72px / 16 = 4.5 This will be translated by Style Dictionary into platform specific units during Style Dictionary's build process.

preserveDesignFileUnits (optional)

This prevents Stratos Tokens from converting the designfile's sizes into unit-less sizes. (In case this property is specified Stratos Tokens will ignore property baseFontSizeInPx)

Style Dictionary markup

We strongly recommend you reading our articles about how to get started with Style Dictionary and Stratos Tokens. They are based on our experience and are fitted for beginners with a designers' perspective.
​
When you feel comfortable, you can jump ahead and dive deep into Style Dictionary’s own website. It’s not the easiest thing to grasp, specially if you have no code experience. That's one of the strongest reasons we actually built Stratos Tokens, we felt there is a gap here we can fill.
No worries, we’ll keep writing easy-to-follow articles on all of these topics for a very long time. Keep tuned.
